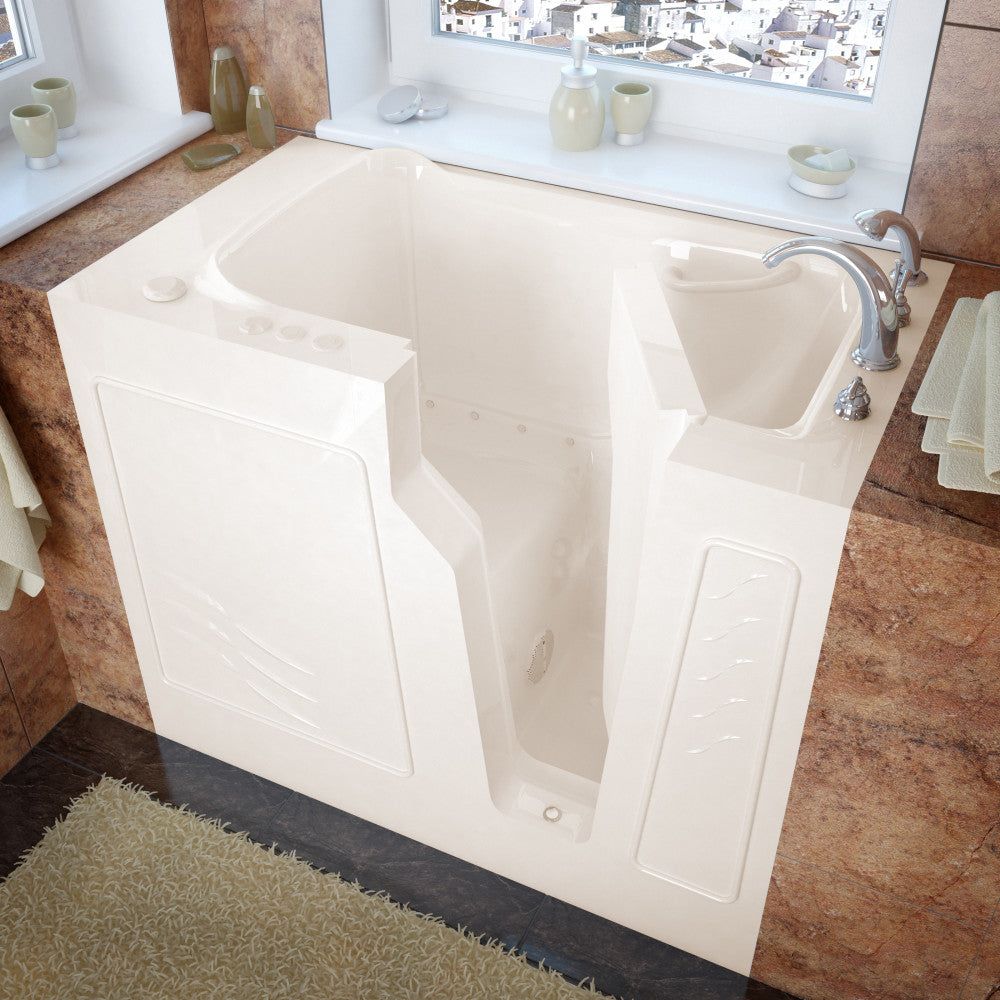

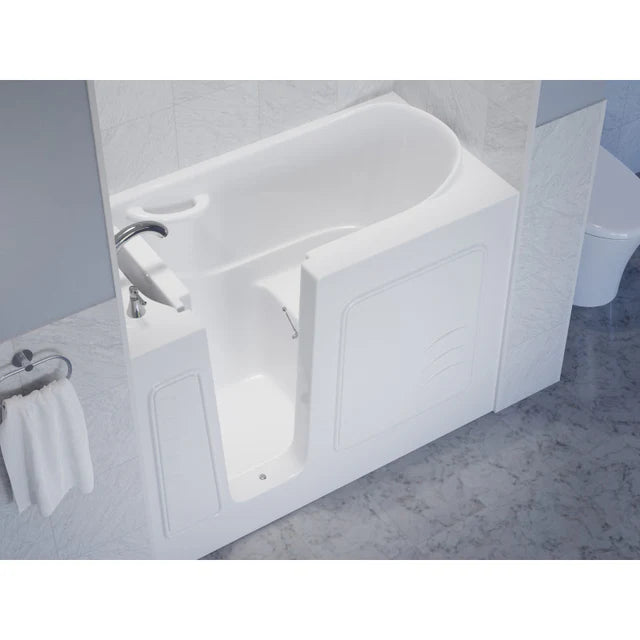

Walk-In Bathtub MediTub 2653 Series 26(W) x 53(L) x 38(H) in.

6(W) x 53(L) x 38(H) in. Walk-In Bathtub 2653 Series

Basic Soaker Standard Features:

• Color: White or Biscuit
• Constructed of High Glass Fiberglass with Triple Gel Coat Finish
• Inward Door Swing
• Available in a Left or Right Door Side
• Max Capacity: 65 Gallons
• Dimensions: 26(W) x 53(L) x 38(H)

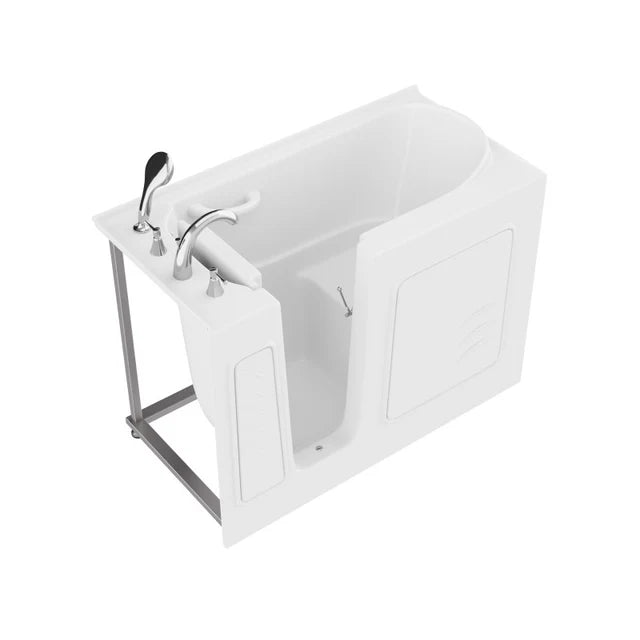

• Free-standing Stainless Steel support frame with adjustable leveling feet

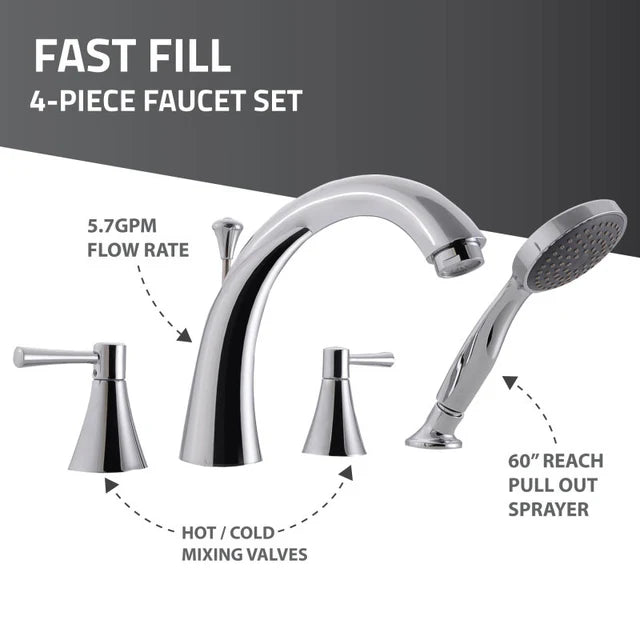

• Faucet Deck

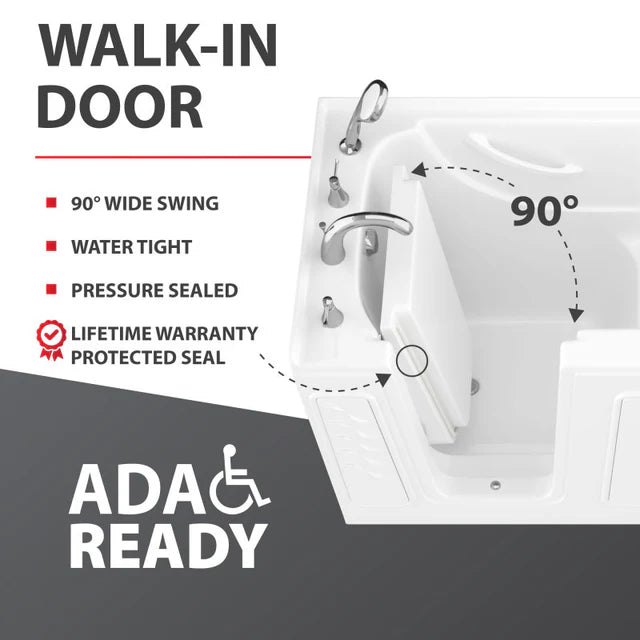

• Advanced watertight, walk-in tub door system
• Built-in contoured (17in. chair-height) ADA compliant seat for easy up and down
• Slip-resistant tub floor
• Color-matched built-in safety grab bar
• Magnetic Access Panels to allow internal entry to unit once installed

Key Attributes
 Walk-in Type:  .......................................Walk-in
 Material:  ................................................Gel Coat
 Soaker Weight:  ....................................120 lbs
 Jetted Weight:  .....................................150 lbs
 Average Fill Capacity*:  .....................50-60 gal
 *Estimated with occupant inside. May vary based on occupant’s volume.

 Required Electrical                       Service 110v
 Air Bath or Whirlpool .........................1x 15-amp GFCI
 Whirlpool w/ Inline Heater ..............1x 20-amp GFCI
 Whirlpool & Air Jetted .......................1x 20-amp GFCI
 Soaker .....................................................n/a

It is vital that tub is completely level with all leveling feet touching the floor for the door, seal and drain to work properly.

Available Therapy Systems

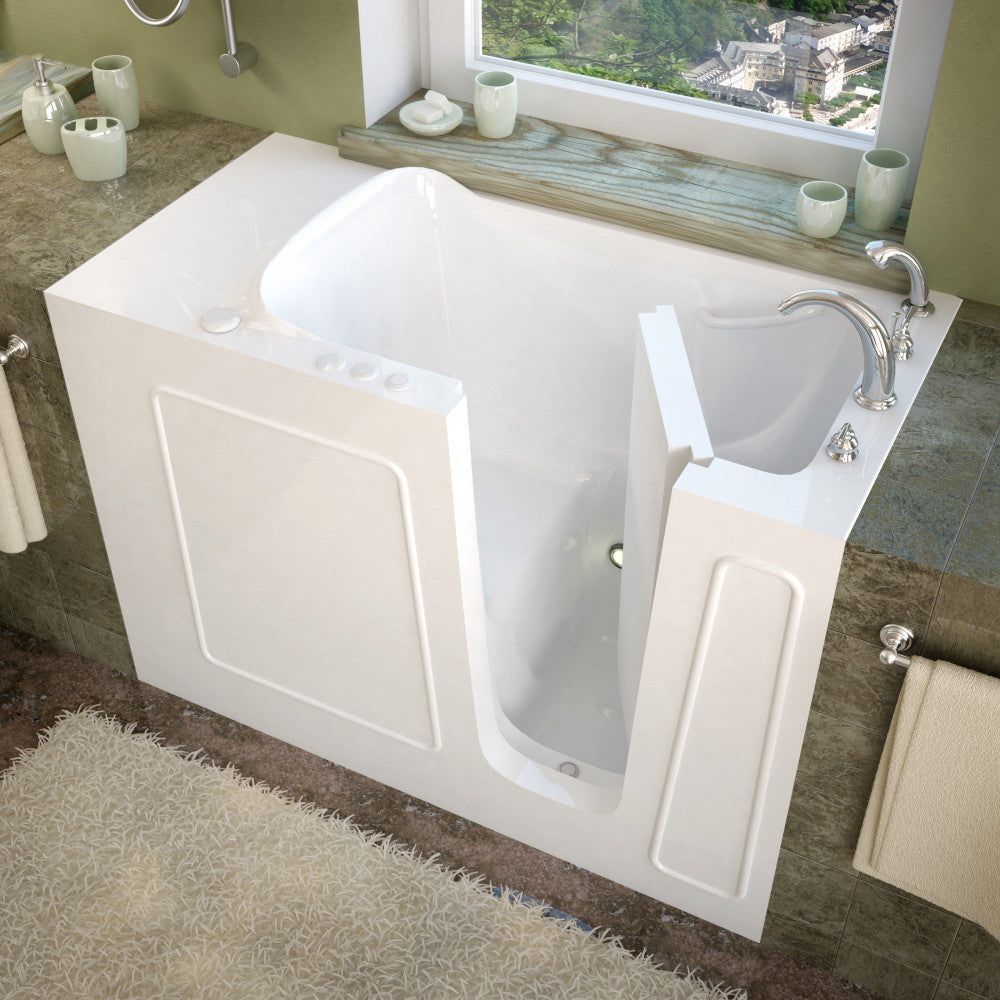

Non-Jetted Soaking

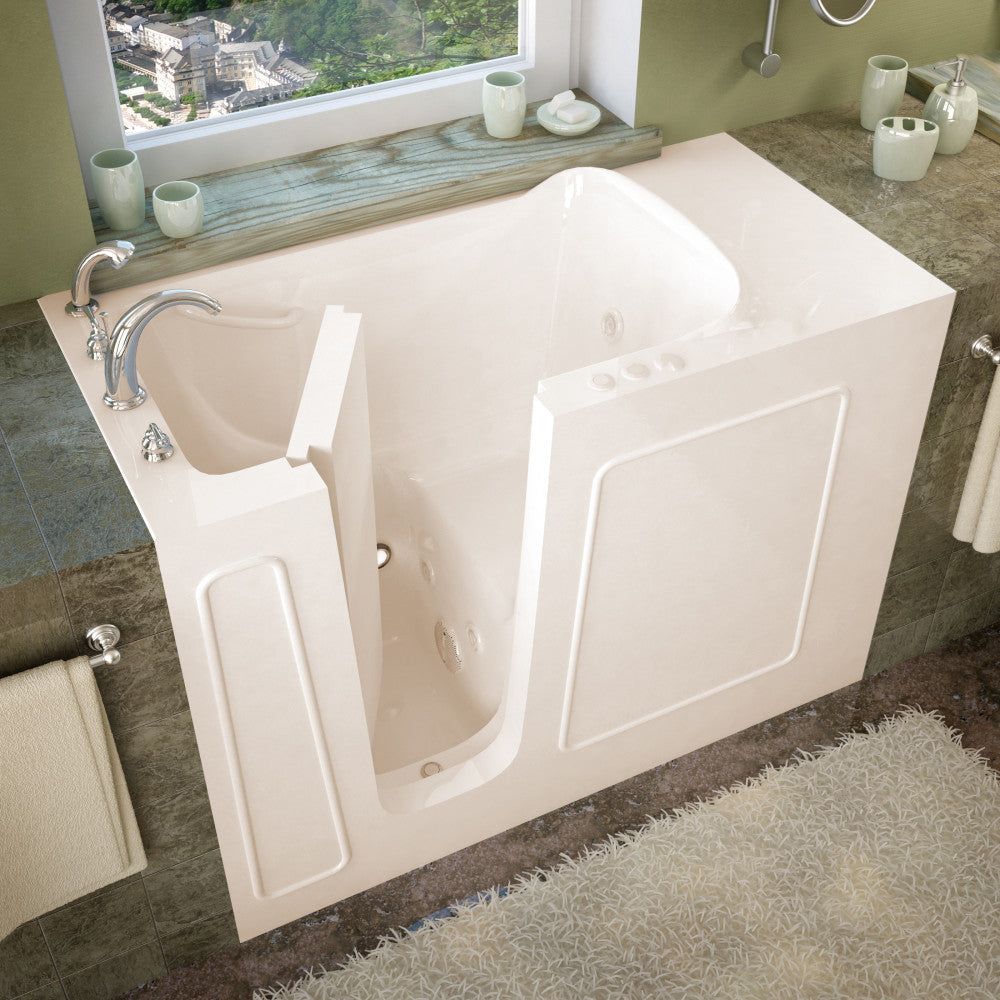

Whirlpool Jetted

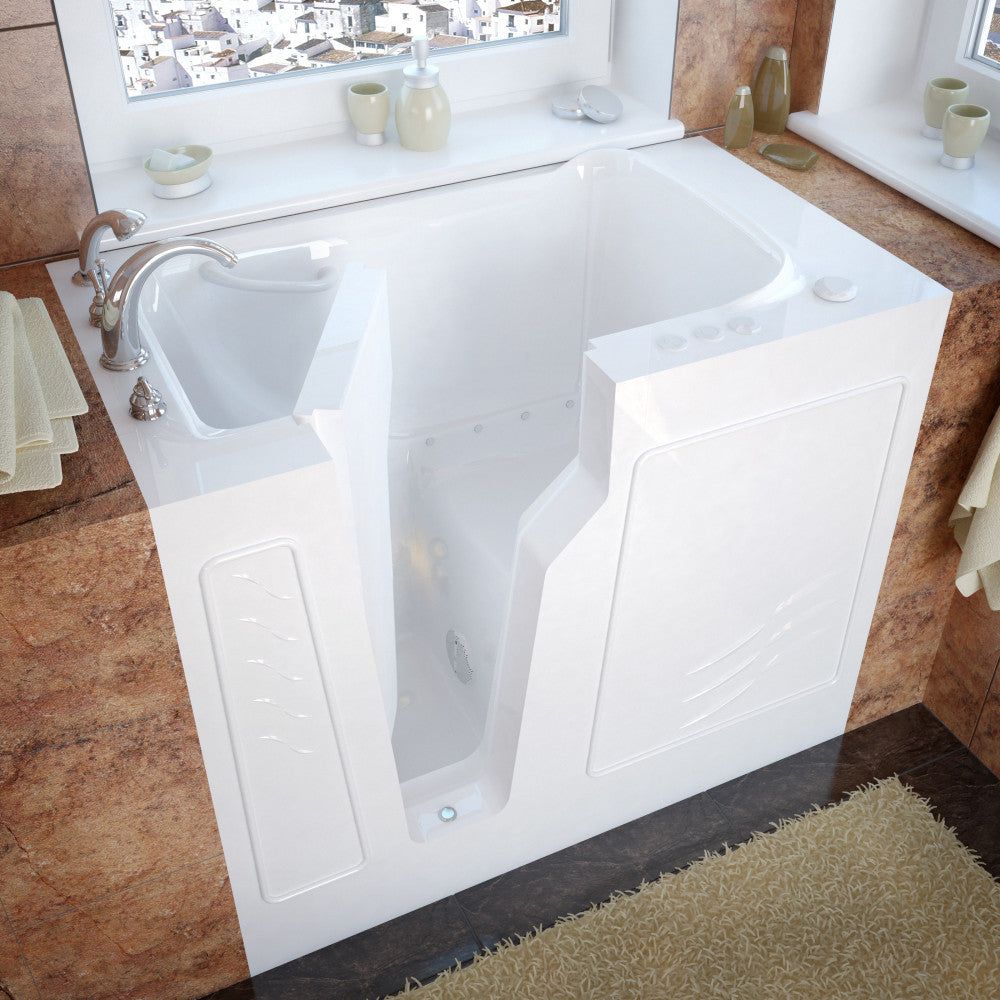

Air Jetted
Whirlpool & Air Jetted

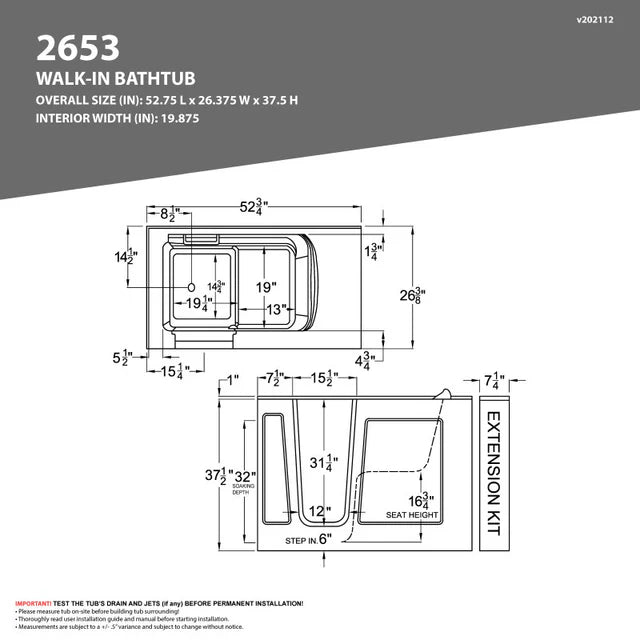

Key Measurements (inches)
 Overall Outer:  ...................52.75 x 26.375 x 37.5
 Interior Width:  ..................19.875
 Standing Area:  .................19.25 x 14.75
 Seat Width:  ........................19
 Seat Height:  ......................13.75
 Soaking Depth:  ................32
 Drain to Side Wall:  ..........8.5
 Drain to Back Wall:  ..........14.5
 Step-in Height:  ................6
 Door Clearance:  ...............10.5
 Faucet Deck: ......................5.5
 Tile Flange: .........................1
 Extension Kit: ....................7

 📢 IMPORTANT!
TEST THE TUB’S DRAIN AND JETS (if any) BEFORE PERMANENT INSTALLATION!
 • INSPECT THE TUB WHEN RECEIVED!

Report any damages or missing parts within 5 business days of delivery date.
 • Before ordering or installing, please consider future access to equipment.
 • Please measure tub on-site before building tub surrounding!
 • Jet, pump & blower locations are predetermined and cannot be changed.
 • Tub door must remain closed when not in use. v5 / 201905. All rights reserved. Subject to change without notice.
 • Please note that installer(s) must be certified, or warranty will be voided.
 • Measurements are subject to a +/- .5” variance and subject to change without
notice. Measurements here in supersede all other published specs prior to
publication date shown below.
 • Inline heater (if included) is designed to maintain water temperature during
operation. It will not heat cold water to desired bathing temperature.
 • Product must be registered for warranty activation. See user manual or visit
SWCORP.com/register for more information.
