Walk-In Bathtub 2646 Series

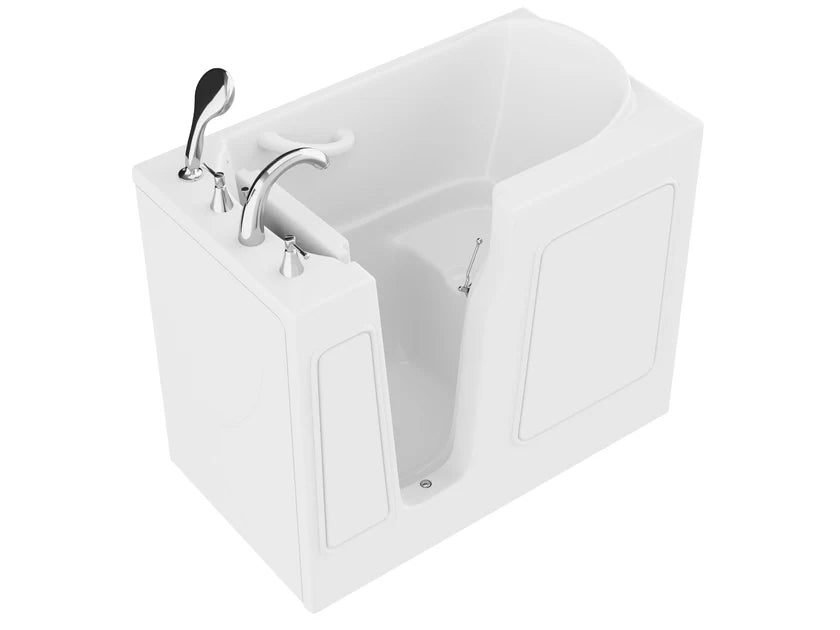

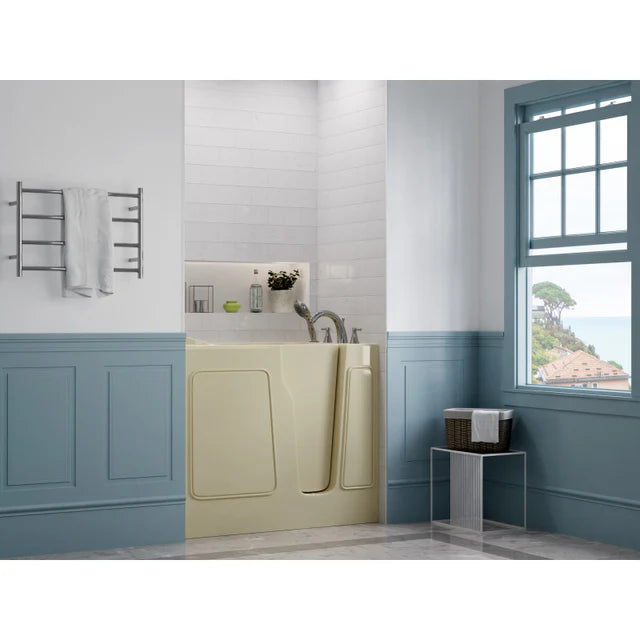

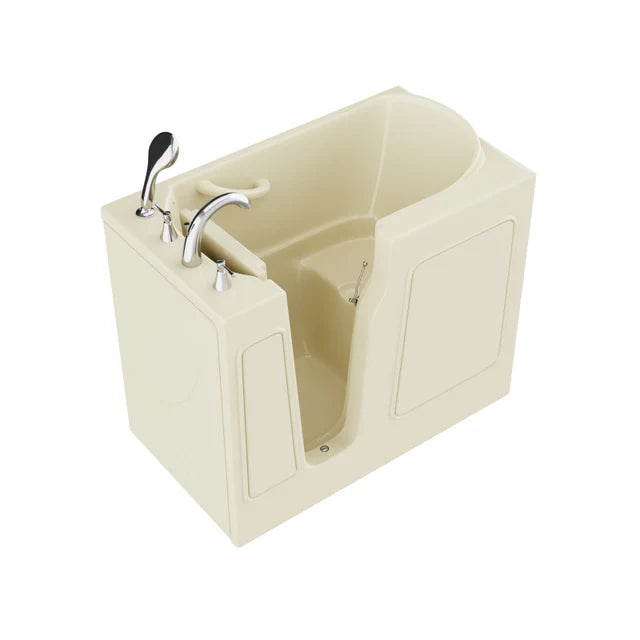

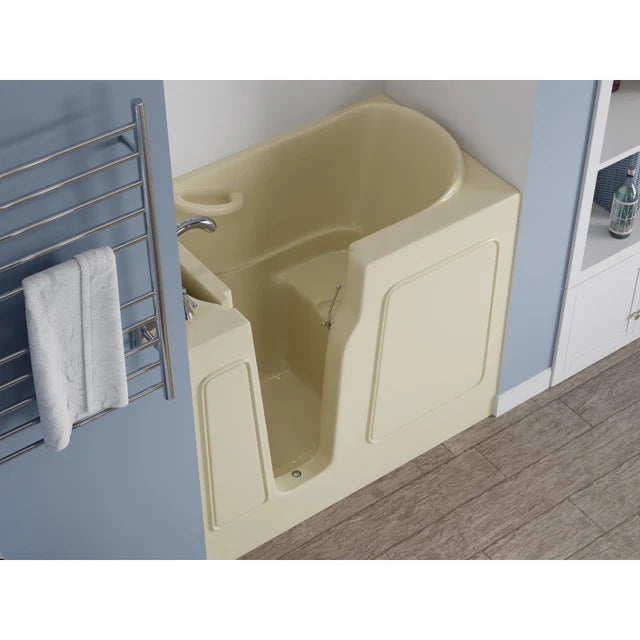

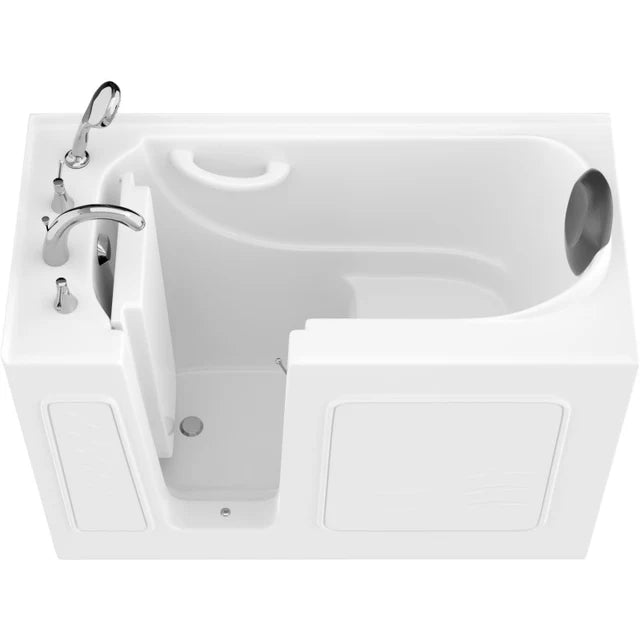

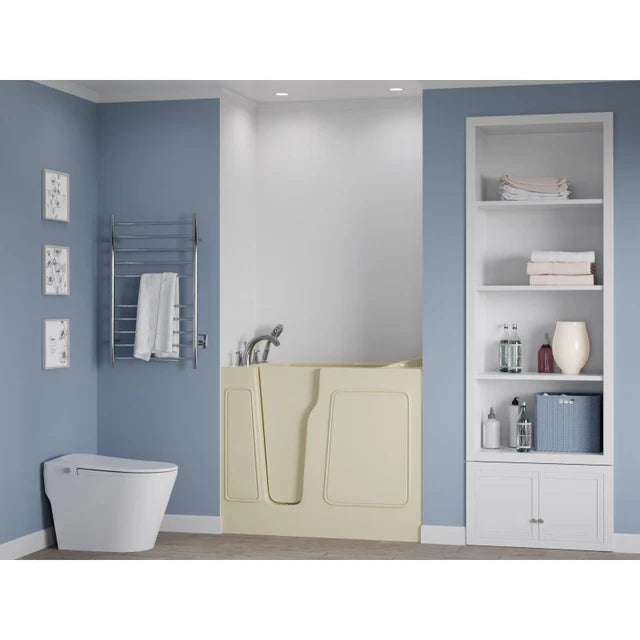

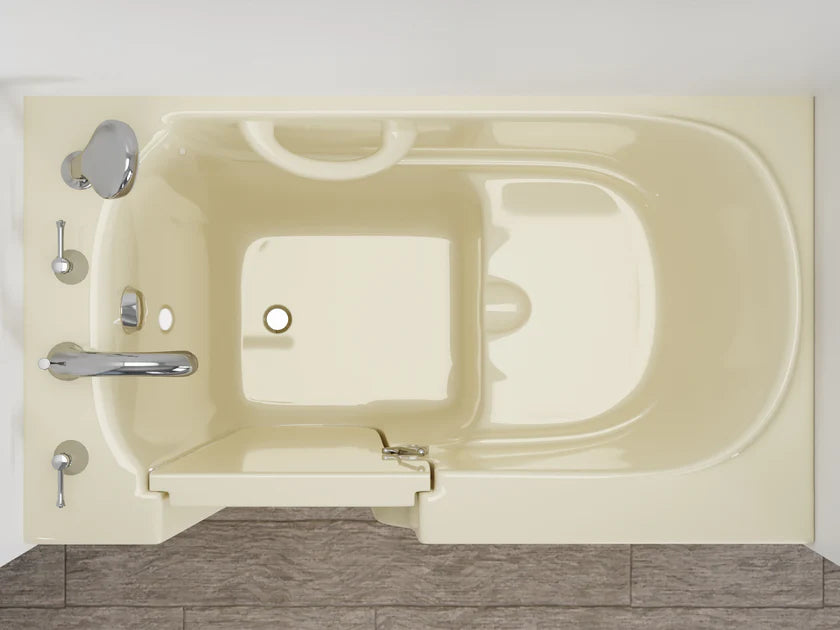

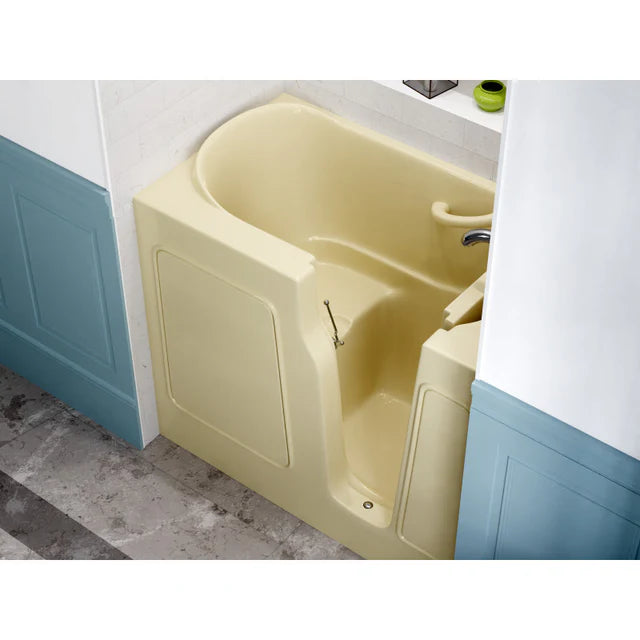

DESCRIPTION: The Meditub 2646 walk-in bathtub features a 26×46 compact, free-standing design, which gives users an option of placing it into an existing bathtub opening or placing the walk-in tub anywhere in the room. Side-covering access panels are easy to add or remove. Triple Gel: Coat Fiberglass construction turns this compact walk-in bathtub into a powerful, long-lasting bathing unit that will help users feel safe while bathing or showering.

For more information about fiberglass walk-in tubs construction, please refer to our Acrylic vs. Fiberglass article.

The 26×46 comes with standard walk-in tub options: air bubble massage system, hydrotherapy, chromatherapy, and aromatherapy.

Air bubble massage system consists of a tee heater that maintains the temperature consistency and symmetrically allocated (a_jet) air jets that provide the spa-like air bubble massage experience.

Hydro system consists of fully adjustable and directional (h_jet) water jets. The water pressure and direction can be adjusted individually.

Dual system 26×46 walk in tubs combine air massage and hydrotherapy systems into one.

 Key Attributes
 Walk-in Type: Walk-in
 Material: Acrylic
 Soaker Weight: 120 lbs.
 Jetted Weight:  155 lbs.
 Average Fill Capacity*: 60-70 gal
 *Estimated with occupant inside. May vary based on occupant’s volume.

 Required Electrical Service 110v
 Air Bath or Whirlpool .........................1x15 amp GFCI
 Whirlpool w/ Inline Heater ..............1x20 amp GFCI
 Whirlpool & Air Jetted .......................1x20 amp GFCI
 Soaker .....................................................n/a

Available Therapy Systems

SKU 2646LBS ...............................Non-Jetted Soaking
SKU 2646LBH ..............................Whirlpool Jetted
SKU 2646LWA ..............................Air Jetted
SKU 2646LBD ..............................Whirlpool & Air Jetted

Choose between Deluxe Hydro, Air or Dual

Deluxe Hydro Massage System includes a one horsepower pump with directional water jets.
The whirlpool massage system includes (h_jet) 360° color matched, directional and adjustable water jets. Each individual water jet is also fully adjustable as far as pressure or velocity of water also included is a FREE Inline Heater which maintains a consistent water temperature, rated at 15 Amps 125 Volts AC, 1 Nema Plug.

Air Therapy Bath

The premium air system comes with (a_jet) advanced warm air bubble massage jets and is adjustable up to three speeds. Air system is assembled with self-cleaning feature also includes a free 300-watt Internal Heater, rated at 15 Amps 120 Volts AC, 1 Nema plug. Dual Massage System combines Hydro & Air System to provide a truly luxurious bathing experience.
Air Switch fingertip touch controls make adjusting water flow and jet options as easy as touching a button.

Meditub™ Hydrotherapy Bath

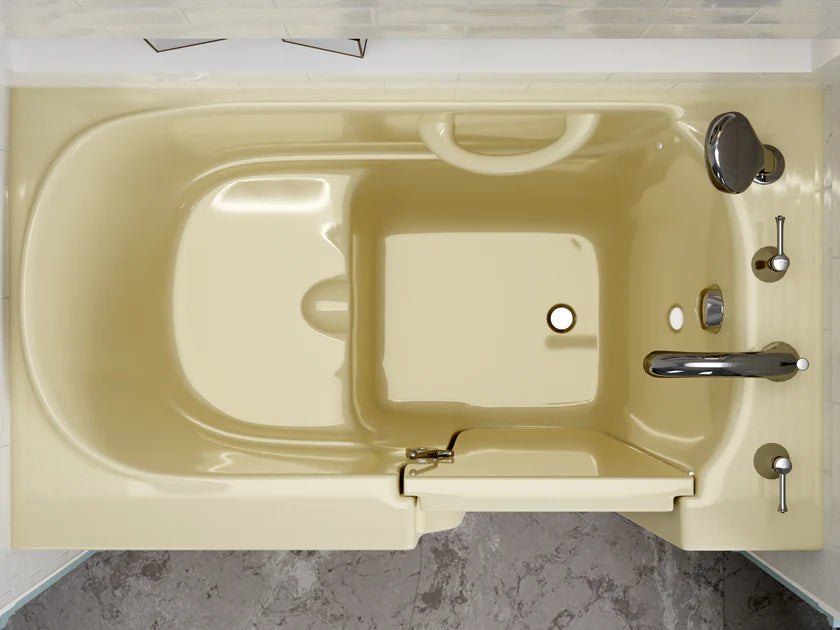

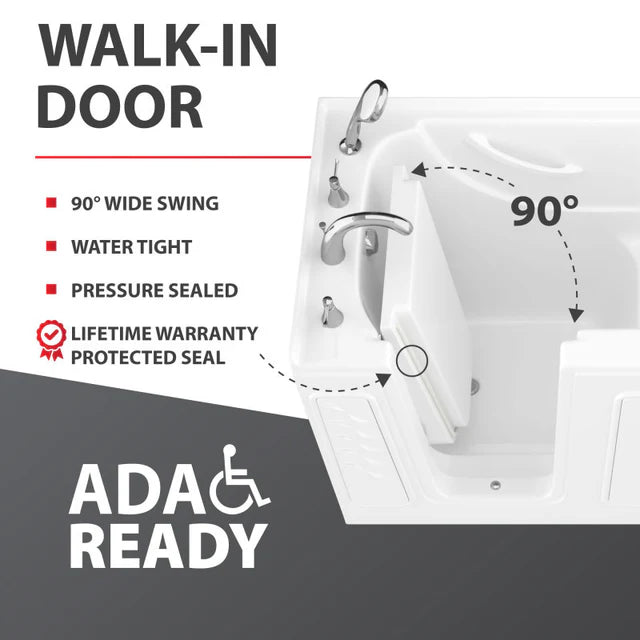

Enjoy the luxury of bathing once again, simple, safe, comfortable and convenient with a walk-in tub from Meditub. There is no straining or struggling to get in or out of the tub when you own a walk-in bathtub. Makes warm baths or soothing showers accessible to people who thought they’d never enjoy the luxury on their own again. The walk-in tub door, low-entry step (5 in.), Built-in Grab Rail and slip resistant tub floor are just a few of the features that make independent bathing secure in a Meditub. Built-in chair-height seat allows you to conveniently experience a comfortable, full body soak without the struggles of getting up and down.

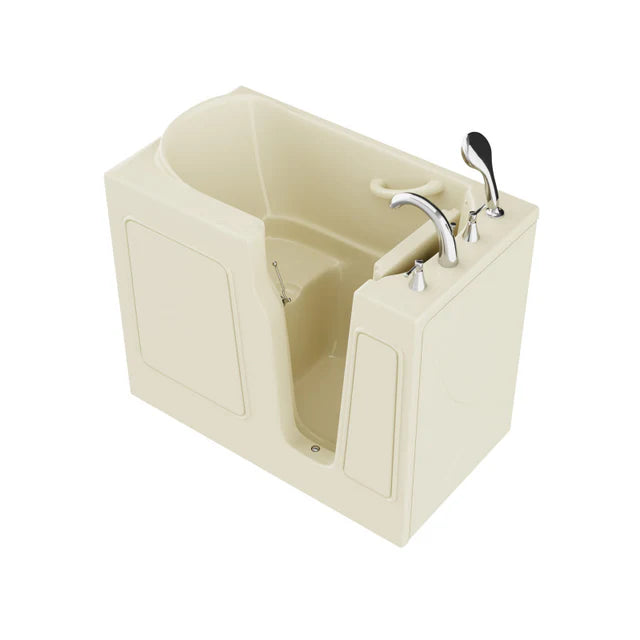

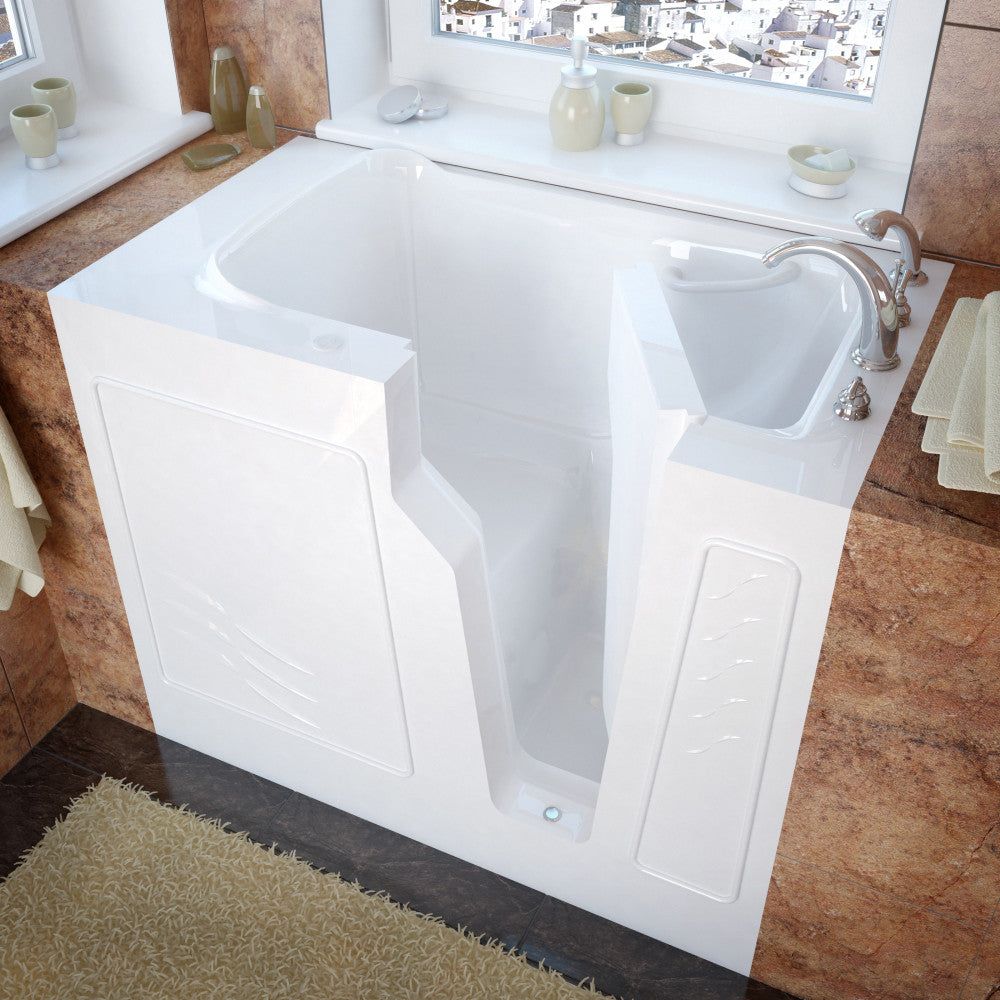

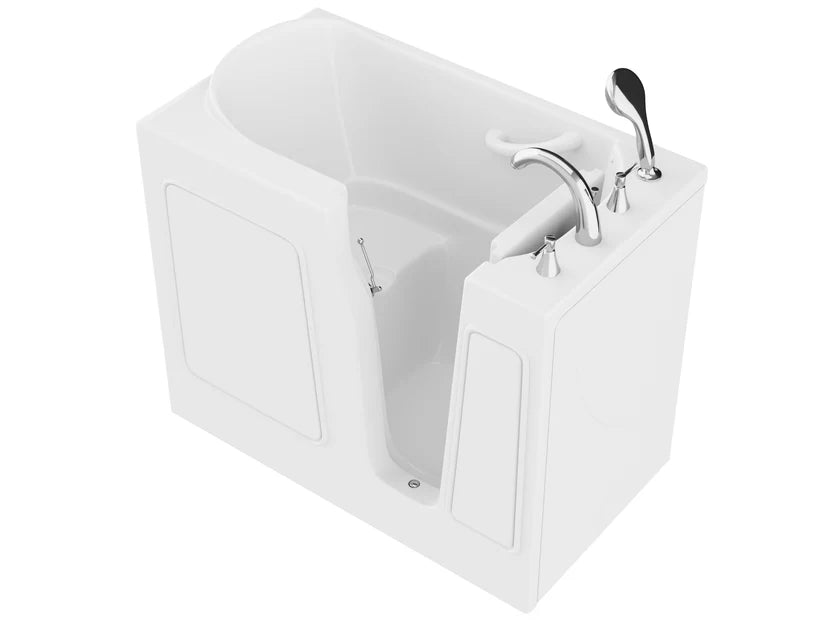

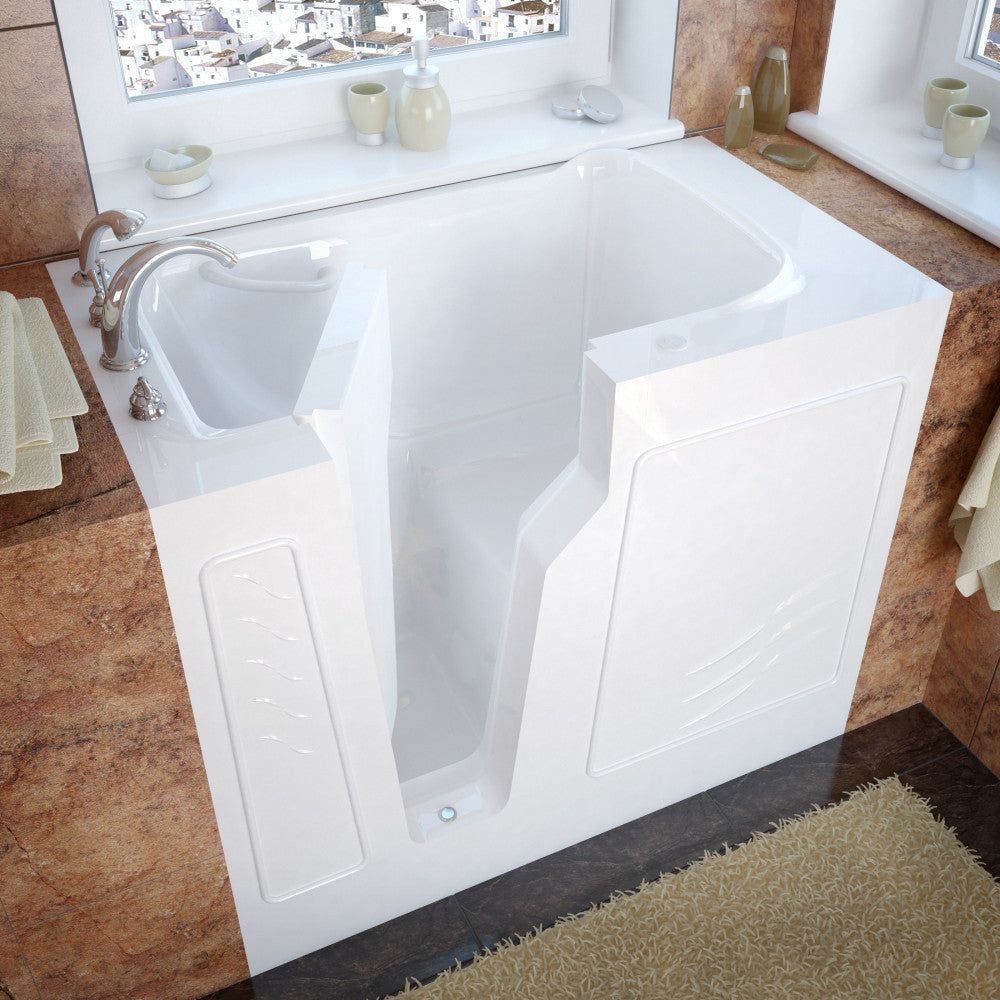

Available in a left or right drain model.

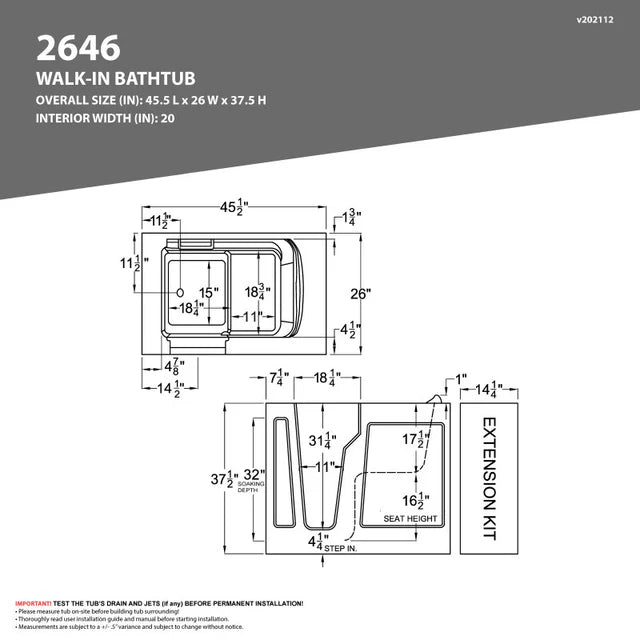

 Key Measurements (inches)
 Overall Outer:  ...................46 x 26 x 39
 Interior Width:  ..................20
 Standing Area:  ..................20 x 16
 Seat Width:  ........................17
 Seat Height:  .......................17
 Soaking Depth:  .................32
 Drain to Side Wall:  ...........08
 Drain to Back Wall:  ..........12
 Step-in Height:  ..................06
 Door Clearance:  ................12
 Faucet Deck: ........................04
 Tile Flange: ..........................n/a
 Extension Kit: .....................14

It is vital that tub is completely level with all leveling feet touching the floor for the door, seal and drain to work properly.

Compliance: Uniform Plumbing Code
UPC®; International Plumbing Code IPC®.

ADA
Standards: ASME A112.19.15; CSA C22.2
No. 218.2-15; UL 1795, 5th Edition Issued
September 02, 2016, including revisions
through August 25, 2017
Certified: UPC, EGS

 • IMPORTANT!  TEST THE TUB’S DRAIN AND JETS (if any) BEFORE PERMANENT
INSTALLATION!
 • INSPECT THE TUB WHEN RECEIVED! Report any damages or missing parts
within 5 business days of delivery date.
 • Before ordering or installing, please consider future access to equipment.
 • Please measure tub on-site before building tub surrounding!
 • Jet, pump & blower locations are predetermined and cannot be changed.
 • Tub door must remain closed when not in use. v5 / 201905. All rights reserved. Subject to change without notice.

• Measurements are subject to a +/- .5” variance and subject to change without
notice. Measurements here in supersede all other published specs prior to
publication date shown below.
 • Inline heater (if included) is designed to maintain water temperature during
operation. It will not heat cold water to desired bathing temperature.
 • Product must be registered for warranty activation. See user manual or visit
SWCORP.com/register for more information.
